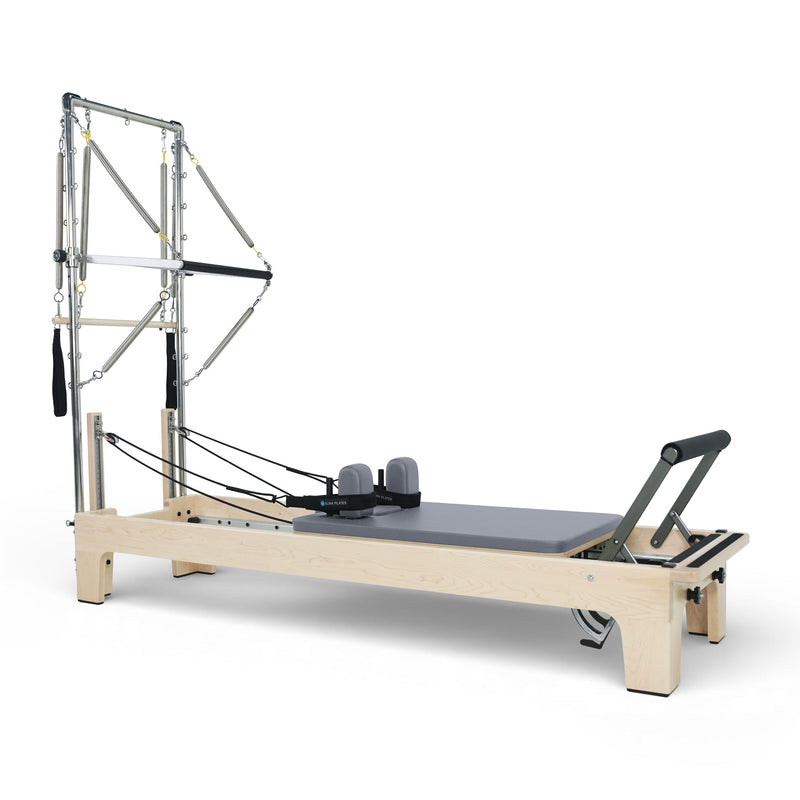

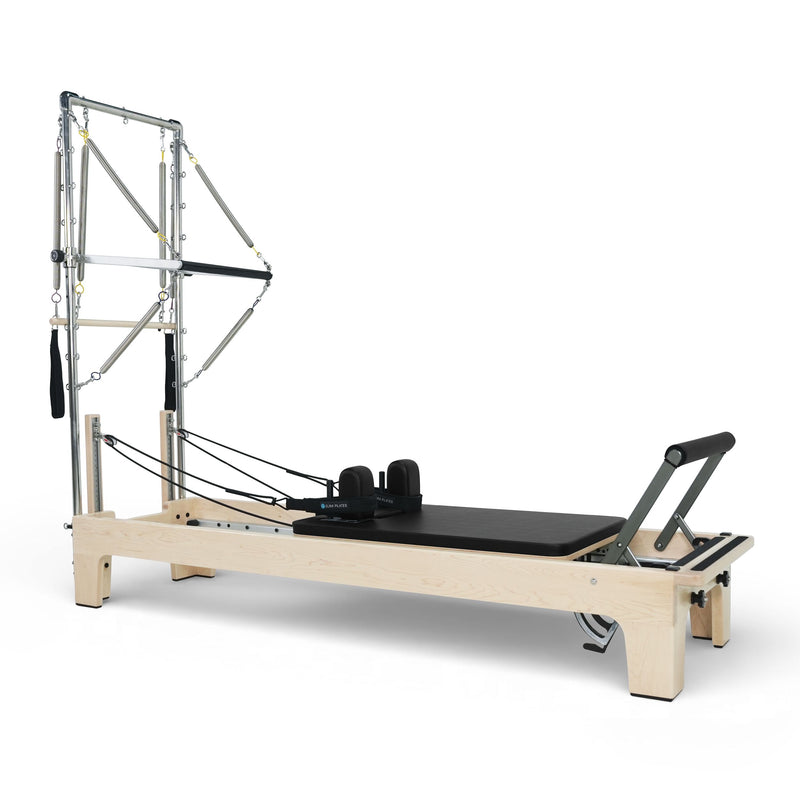

Maple Club Reformer with Tower
The Club Reformer with Tower brings the same smoothness, silence and versatility as the standard Club - premium maple design, sliding five-position spring bar, ultra-quiet cushioned carriage - with a tower fitted for push-through, roll-down and vertical spring work.
The tower comes with a complete set of eight springs in short and long lengths and a mat to cover the carriage, so the machine is ready for the tower repertoire out of the box.
What's Included:
- 1 x Elina Pilates Club Reformer structure + carriage
- Tower with mat to cover the reformer surface
- Tower springs: 2 medium long, 2 light long, 2 medium short, 2 light short
- Sliding spring bar with lever adjustment, 5 positions, neutral and preloaded settings
- Wide non-slip footbar with locking system, 4 positions
- Medium padded box
- Extra-wide removable jump board
- Carriage springs: 2 red, 2 green, 1 yellow
- Retractable rope system with cleat adjustment
- Padded, adjustable shoulder rests and 3-position headrest
- Foot strap in the well area and foot strap for the inner and outer sides of the reformer
Features

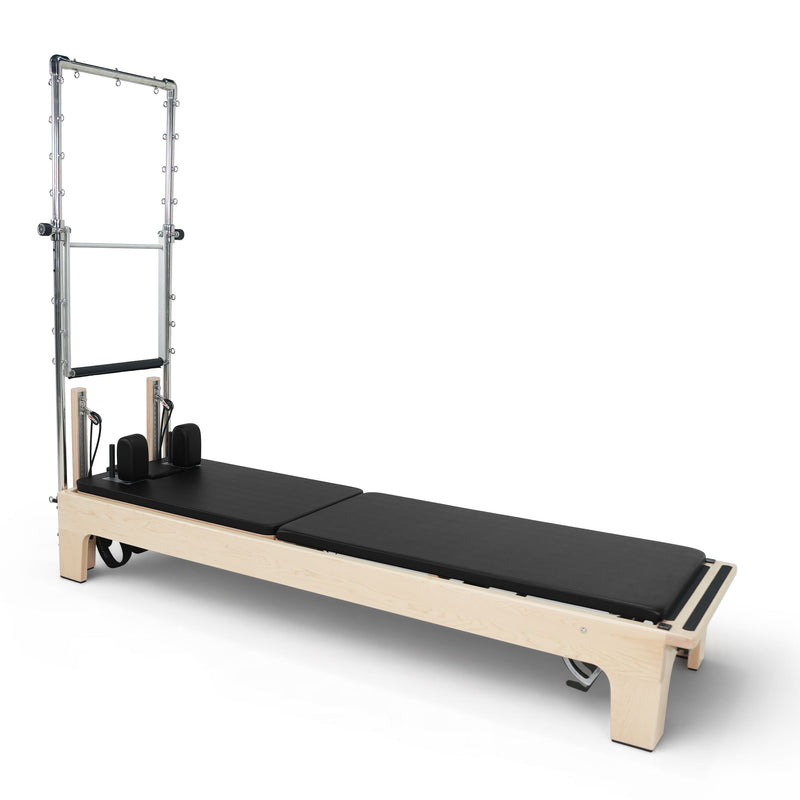

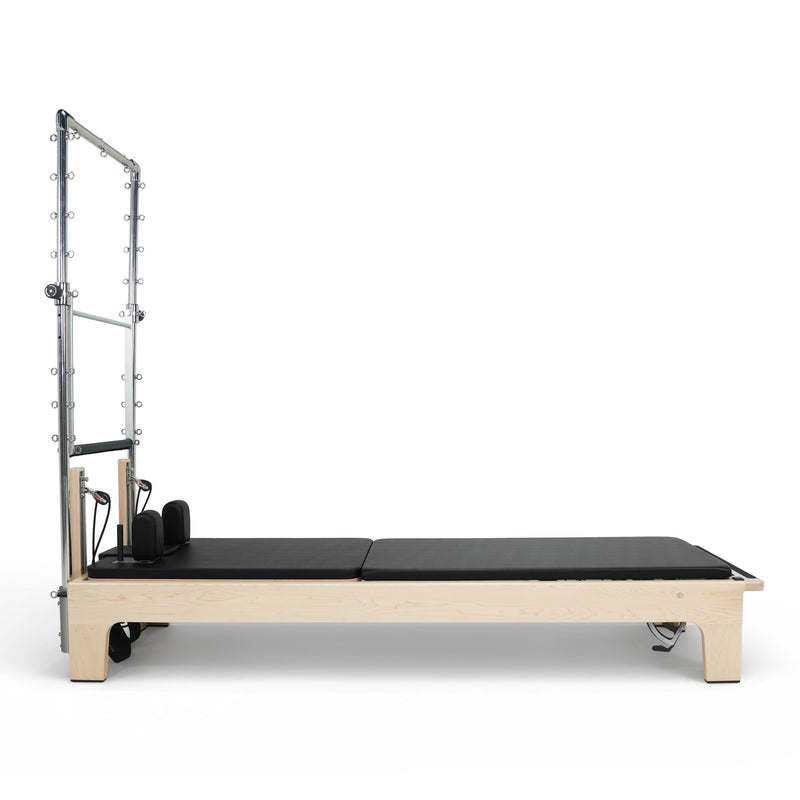

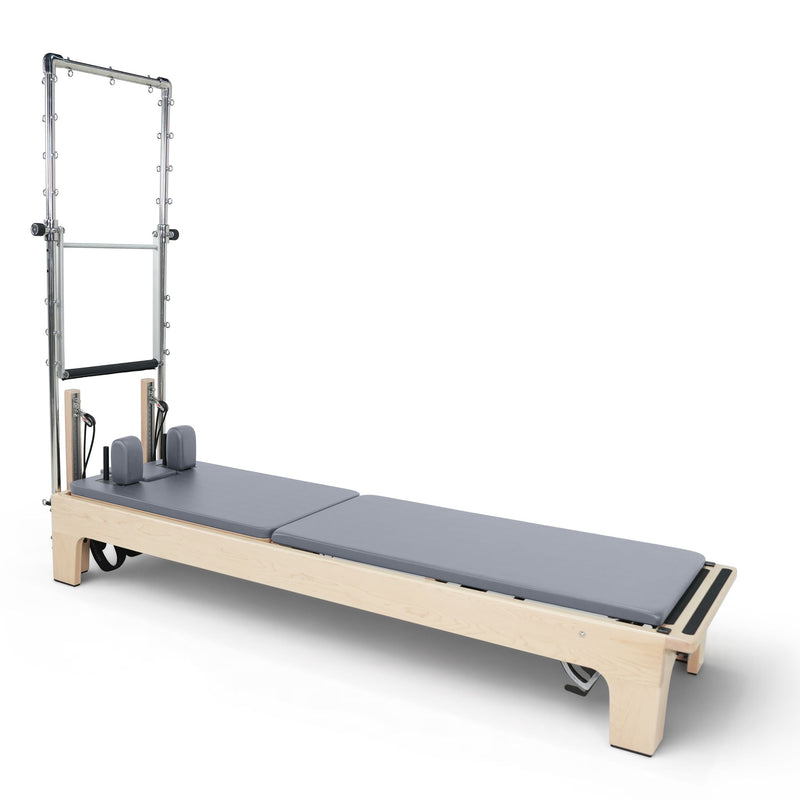

Tower with Eight Springs and Mat
The tower ships with a complete set of eight springs - two medium long, two light long, two medium short and two light short - plus a mat to cover the reformer surface.
Sliding Five-Position Spring Bar
A simple lever adjustment slides the spring bar across five positions, moving the carriage nearer to or further from the footbar while keeping tension balanced.
Neutral and Preloaded Resistance
Two resistance options - neutral and preloaded - let the same spring set be tuned to a different starting tension without changing springs.

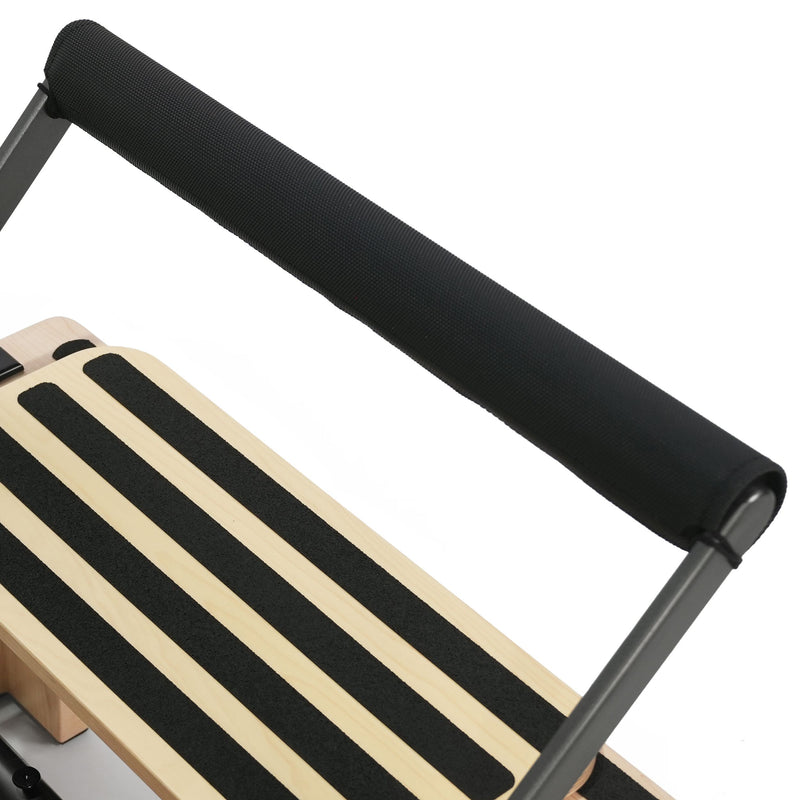

Wide, Stable Non-Slip Footbar
The footbar is wide and stable with a non-slip surface, and its locking system holds it in any of 4 positions.
Ultra-Quiet Cushioned Carriage
Eight polyurethane wheels on high-precision bearings give a smooth, ultra-quiet ride, and a carriage cushioning system takes the impact out of the end of the travel.
Complete Studio Bundle
A medium padded box, an extra-wide removable jump board, retractable ropes with cleat adjustment and foot straps for the well area and both sides of the frame are all included.
Specifications
-
Length: 92.91" | 236 cm
-
Width: 26.97" | 68.5 cm
-
Bed Height: 13.78" | 35 cm
-
Height with Tower: 77.76" | 197.5 cm
-
Weight: 187 lbs | 85 kg
-
Frame Material: Maple wood
-
Carriage Springs: 5 (2 red, 2 green, 1 yellow)
-
Tower Springs: 8 (2 medium long, 2 light long, 2 medium short, 2 light short)
-
Spring Bar: Sliding lever adjustment, 5 positions, neutral and preloaded
-
Foot Bar: Wide, non-slip, locking, 4 positions
-
Headrest: 3 positions
-
Shoulder Rests: Padded, removable and adjustable
-
Rope System: Retractable, cleat adjustment
-
Carriage: 8 polyurethane wheels, high-precision bearings, cushioning system
-
Structural Warranty: 10 years
-
Standard Upholstery: Black or Grey (10 more colors made to order)
Installation
It arrives semi-assembled
Elina ships its apparatus part-built and states that assembly is designed to be done without professional assistance: the frame comes as one piece and you add the accompanying parts. Expect to fit the footbar, ropes and any tower or box components supplied with your configuration.
Plan for two people
Delivery is to street level, and at 187 lb this is not a machine to move alone. Two people, a clear path from the curb to the room, and about an hour is the realistic picture. Measure the doorway and any turn at the top of a staircase before delivery day rather than after.
Tools
The fixings and keys needed are supplied in the packaging. No drilling and no wall fixing for a free-standing reformer; wall units and boards are the exception and do need fixing into structure.
First session setup
Once it is together, run the carriage end to end a few times to seat the wheels, check the rope lengths match on both sides, and confirm the footbar locks positively into every position before loading the springs to full.
Resources
Warranty, Shipping and Returns
This apparatus is covered by the manufacturer's warranty from the date of purchase: a 10-year structural warranty on the frame and welds and a 2-year warranty on all other components. Upholstery and fabric are covered for 90 days against defects in normal use.
To keep the warranty valid: use the equipment indoors in a climate-controlled space, follow the maintenance guidelines in the manual, and replace springs every two years on spring-loaded equipment. The warranty applies to the original purchaser with proof of purchase and covers repair or replacement of defective parts at the manufacturer's option. Warranty claims are handled through us with Elina Pilates' technical service.
Free curbside freight delivery
in the contiguous United States (we do not ship to Alaska, Hawaii or Puerto Rico). Your equipment ships via LTL freight carrier, carefully packed and secured to a wooden skid. Curbside delivery includes liftgate service, where the driver unloads to the curb as close to your building as possible. We recommend having two people available to carry the equipment inside; equipment arrives semi-assembled and is designed to be set up without professional help.
Lead times
Elina Pilates equipment is built at the factory in Spain. In-stock items in standard Black or Grey upholstery typically deliver in 2 to 4 weeks. Special upholstery colors are made to order and take approximately 10 weeks. We confirm your delivery estimate when your order is processed, and the carrier will call to schedule delivery.
Inspect on delivery
please note any damage on the carrier's waybill before signing, and report damaged, missing or incorrect items within 48 hours of receipt. Do not open boxes with box cutters, because blades can damage upholstered parts.
We accept returns within 30 days of delivery on eligible items. Equipment must be unused, in its original packaging with all instructions, accessories and documentation. All returns require a Return Merchandise Authorization (RMA) number issued before shipping the item back; the customer is responsible for return shipping costs.
Non-returnable
made-to-order items (including special upholstery colors), large equipment (reformers, cadillacs, towers, ladder barrels, chairs, wall units and boards, barrels and arcs), accessories and spare parts, except where covered by warranty. If you receive a damaged, defective or incorrect item, contact us within 48 hours and we will make it right.
About Elina Pilates
Elina Pilates has designed and built Pilates apparatus in Navarra, northern Spain since 2007, from its own plant in the Noaín-Esquíroz industrial park outside Pamplona. Close to two decades in, its machines are in studios across five continents.
Rock maple is the house timber, chosen for strength and dimensional stability across the professional wood range; the aluminium machines use anodised high-strength extrusion. One detail runs through nearly the whole catalogue, a near-silent carriage on eight polyurethane wheels with high-precision bearings. Machines are developed with working Pilates teachers, and Elina holds multiple patents and registered designs.
The studio wood range
is where Elina started. The Wood Reformer was the company's first machine and remains the entry point to the professional wood line, with rock maple and stainless steel, adjustable-height pulleys and a movable spring bar. Physio models raise the bed for clinical work at standing height. The Club Reformer is the newest, built for group classes: its spring bar shifts on a lever, sliding the carriage nearer or further from the footbar while holding tension balanced, across five positions.
The Pilates Works is an approved Elina Pilates retailer. Equipment is supplied new with the full manufacturer's warranty, and we handle any claim directly with Elina.
