Studio Performance, Built for the Room You Have

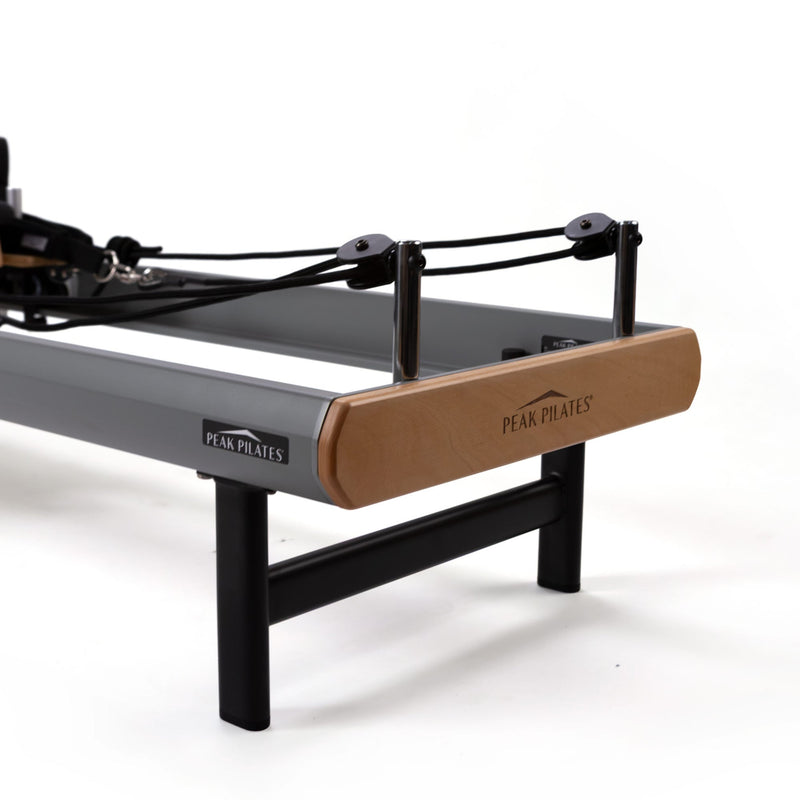

The casa Reformer brings the strength, smooth glide and performance of a professional studio reformer into the home. Extruded aluminum rails with aluminum and wood end panels keep it light and durable; integrated transport wheels make it easy to move and reposition.
It is a full studio-height machine in a compact footprint - built for the dedicated home practitioner and for hybrid users balancing home sessions with studio classes. This configuration includes the standard Long/Short Box.
Included with Your Purchase:
- casa Reformer with extruded aluminum rails and aluminum/wood end panels
- Five-spring system: 1 red (heavy), 2 yellow (medium), 2 blue (light)
- Four-position one-hand gear bar with locking feature
- Locking footbar

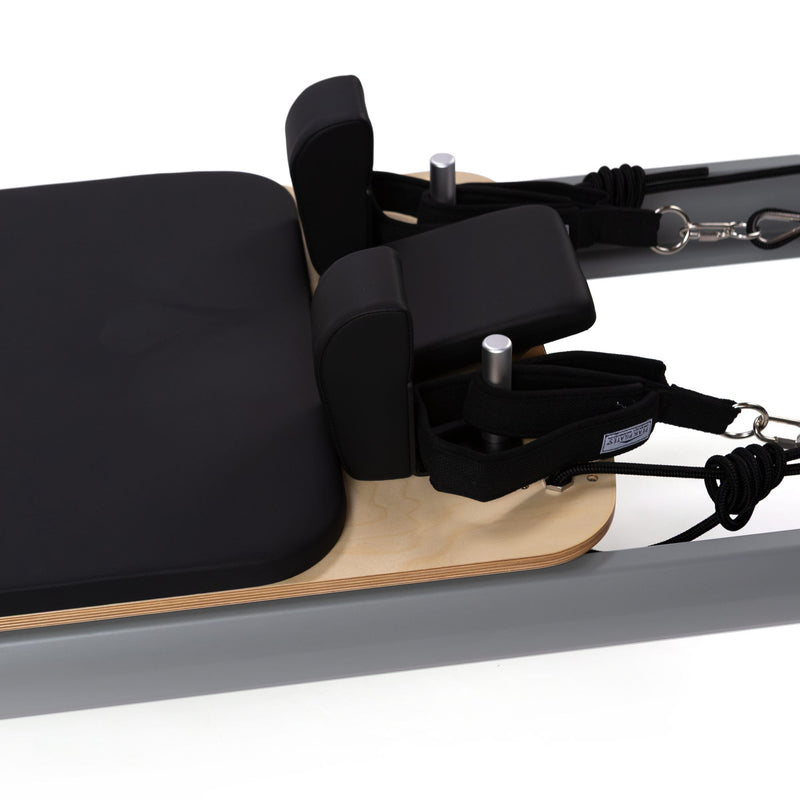

- Three-position head rest
- Rope cleat with enlarged riser pulley wings
- Integrated standing platform with non-slip grip pads and centre indicator
- Integrated transport wheels
- Standard Long/Short Box: 9.5" H × 16" W × 27.5" L | 24 × 41 × 70 cm
- 2 months of complimentary Pilates Project app access
Features
Full Studio Height, Built for Home
A full studio-height reformer engineered for the home: the same carriage glide and working geometry as a studio machine in a compact, space-conscious frame.

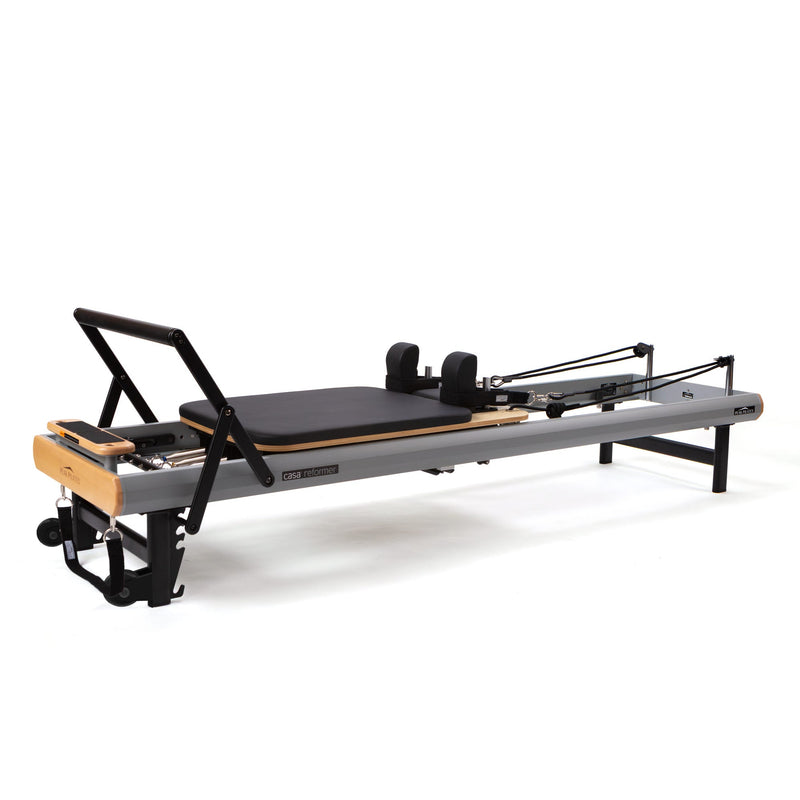

Integrated Transport Wheels
Built-in wheels let one person reposition the reformer between sessions or roll it out of the way when the room has another job to do.
Premium Wide-Section Wheels and Open Rail
Wide-section carriage wheels give a smoother, more consistent ride, and the open rail section allows the carriage to be removed for cleaning.

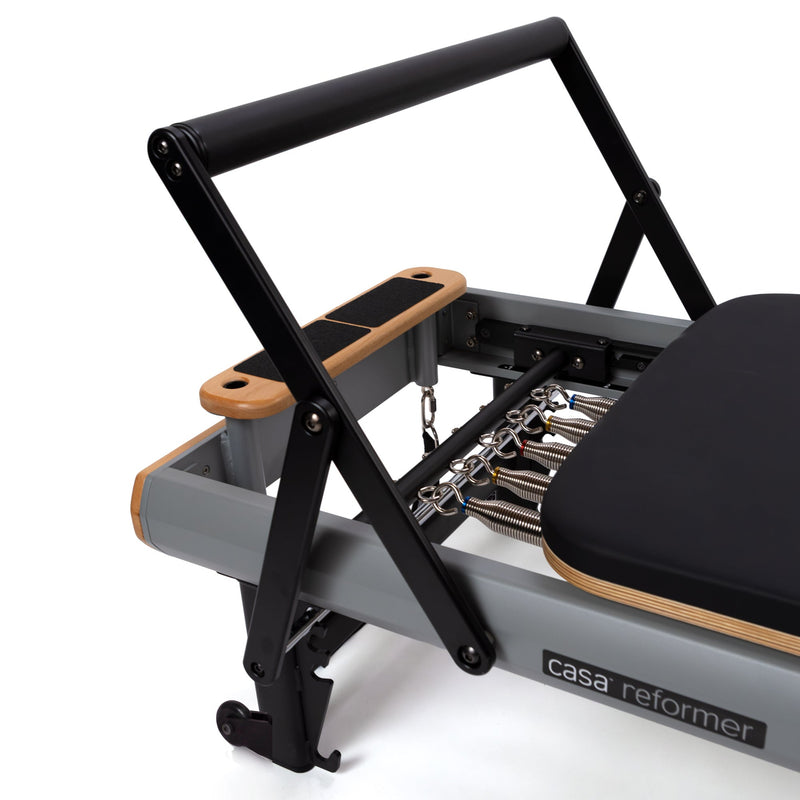

Five-Spring System with Locking Gear Bar
One red (heavy), two yellow (medium) and two blue (light) springs run against a four-position one-hand gear bar with a locking feature for security during use.
Long/Short Box Included
The standard Long/Short Box (9.5" H × 16" W × 27.5" L) ships with the reformer for seated, lying and extension variations across the repertoire.
Two Months of Guided Programming
Every casa purchase includes two months of complimentary access to the Pilates Project app, with expert-led classes, structured training plans and an on-demand library.
Specifications
-
Frame: Extruded aluminum rails with aluminum and wood end panels
-
Overall Dimensions: 97" L × 25" W × 16" H | 246 × 64 × 41 cm
-
Recommended Training Area: 121" L × 49" W | 307 × 124 cm
-
Equipment Weight: 256 lbs | 116 kg
-
Maximum User Weight: 250 lbs | 113 kg
-
Spring System: Five springs: 1 red (heavy), 2 yellow (medium), 2 blue (light)
-
Gear Bar: 4 positions, one-hand, with locking feature
-
Head Rest: 3 positions
-
Carriage Wheels: Premium wide-section
-
Long/Short Box: 9.5" H × 16" W × 27.5" L | 24 × 41 × 70 cm
-
Intended Use: Home use; not recommended for commercial or high-traffic studios
Installation
It arrives mostly built
Peak ships this crated and banded, with the frame, carriage and springs already assembled as one piece. What is left to you is bolting on the legs and risers, fitting the ropes and foot strap, and removing the shipping spacers that sit between the carriage frame and the rails to stop the wheels loading in transit. Those spacers are easy to miss, and the carriage will not run properly until they are out.
Plan for two people
Peak specifies a two-person lift for any placement or frame movement on its apparatus, and at 256 lb this is not a machine to move alone. Two people, about an hour, and a clear path from the kerb to the room. Delivery is curbside, so the lift from the kerb into the house is yours to organise.
Tools
The hardware and hex keys needed are in the box. No drilling, no wall fixing, no specialist tools.
First session setup
Once it is together, run the carriage end to end a few times to seat the wheels, check the rope lengths match on both sides, and confirm the gear bar and footbar lock positively into every position before loading the springs.
Resources
Warranty, Shipping & Returns
This apparatus is covered by the Peak Pilates (Mad Dogg Athletics) manufacturer's warranty from the invoice date: a 2-year warranty on the structural components, a 1-year warranty on all other components, and a 60-day warranty on upholstery, ropes, foot straps, and double loops.
The warranty applies to the original purchaser with proof of purchase from an authorized Peak Pilates dealer, is non-transferable, covers materials (not labor), and excludes normal wear and tear, cosmetic damage, misuse, and damage from improper installation or lack of normal maintenance. The manufacturer repairs, replaces, or refunds defective components at its option; warranty claims are handled through us with Peak Pilates product support.
Free curbside freight delivery
in the contiguous United States (we do not ship to Alaska, Hawaii, or U.S. territories). Your equipment ships via freight carrier with a skilled delivery team that unloads it from the truck and places it at the curb. The carrier will call to schedule a delivery appointment once your order reaches the local terminal; deliveries are made Monday through Friday and an adult signature is required. Curbside delivery does not include inside carry, packaging removal, or assembly - we recommend having a second person available to help move boxes inside. Inside / white-glove delivery (a two-person team places the equipment in the room of your choice and removes all packaging) is available as an upgrade - contact us for a quote.
Lead times
in-stock Peak Pilates equipment typically delivers in 2-4 weeks. We confirm your delivery estimate when your order is processed.
Inspect on delivery
please note any damage to the packaging on the carrier's delivery receipt before signing, and keep all packing materials. Concealed damage must be reported within 48 hours of receipt, and any missing items within 72 hours, so we can arrange replacements with the manufacturer.
Per the manufacturer's policy, Peak Pilates large equipment is not returnable - this includes reformers, tower systems, cadillacs, chairs, barrels, wall units, equipment mats, springs, and any custom built-to-order items. Please measure your space carefully and contact us with any questions before ordering - we are happy to help you choose the right apparatus.
Eligible smaller items may be returned within 30 days of receipt with prior authorization: contact us for a Return Merchandise Authorization (RMA) number before shipping anything back. Returned items must be in like-new condition in their original packaging; a restocking fee of up to 20% may apply, and original shipping charges are not refundable.
If you receive a damaged, defective, or incorrect item, contact us within 48 hours of delivery and we will make it right through the manufacturer's replacement process.
About Peak Pilates
Peak Pilates was founded in Colorado in 1996 and has been part of Mad Dogg Athletics — the company behind Spinning® — since 2009. Its education program, launched in 2001, was written by teachers trained in the direct line from Joseph Pilates: Colleen Glenn-Wilson, Peak's first Educational Director, studied primarily with Romana Kryzanowska, and also with Kathy Grant, Ron Fletcher and Eve Gentry.
That inheritance shapes the catalogue, which splits in two: the Studio Wood Line — classical apparatus handcrafted in solid wood, with a lifetime frame warranty on its reformers, Total Workout Systems and Cadillacs — and the Metal Line, where PilateSystem, MVe, fit and casa put the same repertoire on aluminium frames that stack, fold and nest for tight rooms.
casa
is Peak's home reformer: studio-grade in feel, but explicitly not recommended by Peak for commercial or high-traffic studio use, and rated to a lower maximum user weight than the studio machines. It is built on extruded aluminium rails with aluminium and wood end panels, with a locking footbar, three-position headrest and integrated transport wheels. It shares the Metal Line's five-spring colour set, so the resistance language carries over.
The Pilates Works is an authorized Peak Pilates dealer — which matters, because Peak's warranty covers only equipment bought from one. We handle warranty and parts claims directly with Peak.
