Foldable Pilates Reformers: Fold, Stand or Stack?

Plenty of reformers are sold as space saving, but the phrase covers four quite different designs. Some hinge in half, some slide shorter, some stand on end and some stack flat. Picking the right one starts with where the machine will go when nobody is using it.

What is a foldable Pilates reformer?

A foldable Pilates reformer is any reformer designed to shrink its footprint between sessions. In practice that means one of four approaches: folding in half, collapsing telescopically, standing upright or stacking. Only the first two change the machine's shape. The others keep the frame whole and simply change where it sits.

Reformers that fold: Elina Fold and Domo

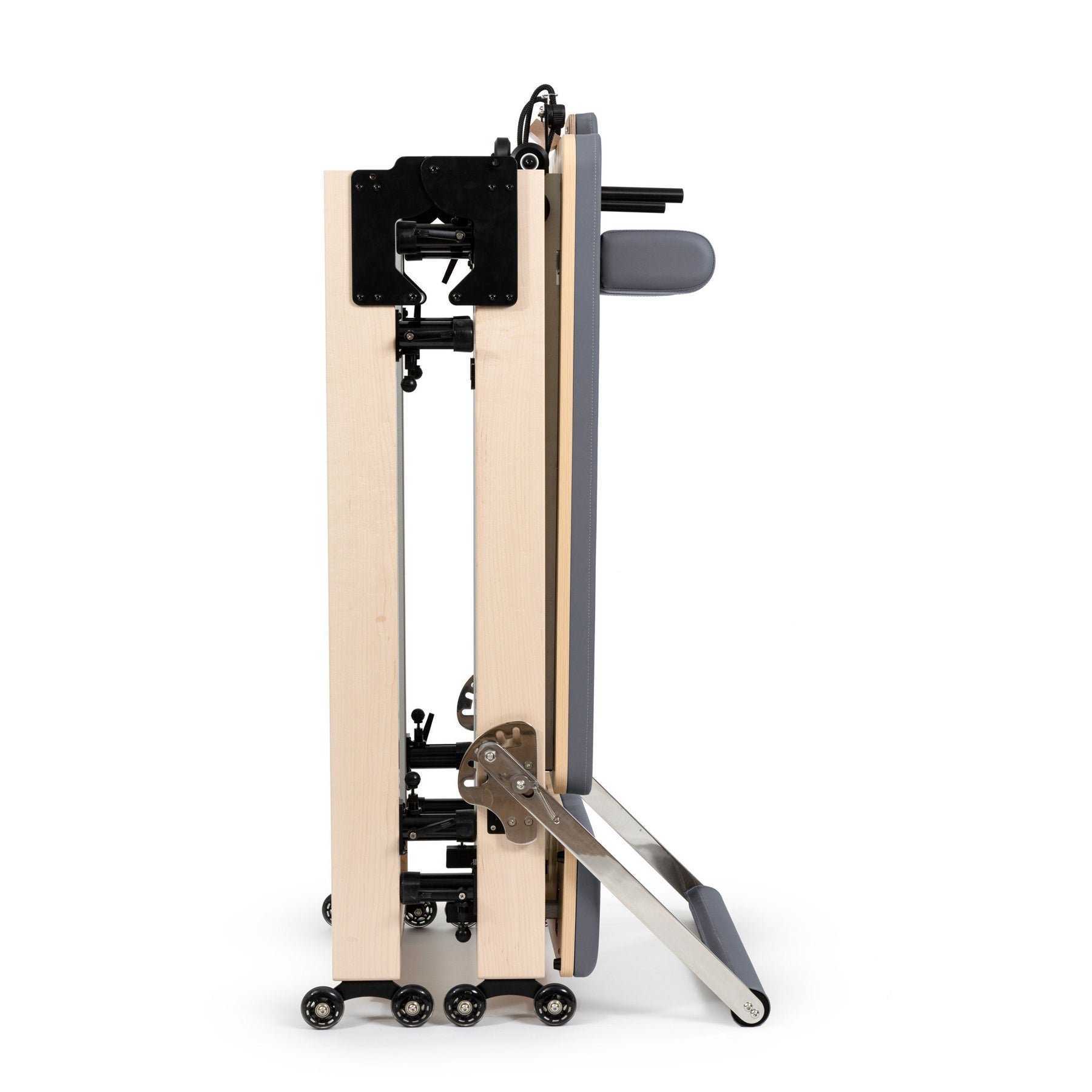

The Elina Fold hinges in the middle and stands on its own wheels. Folded, it is 51.18 in high and 25.98 in deep, with a width of 16.54 in without the footbar. The usual weakness of a hinged frame is a ridge where the halves meet. Elina tackles this with a patented alignment system that draws both halves into line as the machine opens, so the carriage rolls across the join without a bump. The Fold weighs 159 lb.

The Elina Domo takes a different route. Its lightweight aluminium frame collapses telescopically to 63.98 in long and 13.39 in high when folded flat, ready to slide under a bed or into a closet. It can also stand upright on a 21.26 by 28.35 in footprint. At 97 lb without accessories it is the lightest reformer in the Elina range, with two wheels for moving it.

Reformers that stand on end

A standing reformer keeps its full length but turns it vertical, so the floor area drops to roughly its width and depth.

• Elina Vertical: stands upright on two removable legs that form a steady base while it is parked. It weighs 138 lb.
• Elina Nubium and Lignum: both store vertically and roll on integrated transport wheels, at 139 lb each.
• Peak Pilates fit: a full studio-height aluminium reformer that can stand on its end for storage.

Before choosing this route, check the ceiling. A reformer standing on end needs clear height close to its own length, plus space to tip it up and down safely.

Reformers that stack

Stacking suits studios more than homes, because it only pays off with several machines. Elina's HL line stacks horizontally and can also stand vertically. Its tower versions stack without removing the tower. Peak's MVe nests up to four high without taking off its legs. The fit also stacks four high.

Folding has a studio form too. The Peak PilateSystem Deluxe folds a reformer with tower into an upright package 25.5 in long and 29 in wide that rolls away, although at 341 lb it is a two-person job to handle.

Which tradeoffs matter most?

The main tradeoffs are setup time, weight and rigidity. A machine that changes shape adds an unfolding step to every session. A telescopic or hinged frame also has a joint that one-piece frames avoid, which is why alignment hardware matters. Upright and stacking designs stay rigid but need lifting space.

Weight decides who can do the moving. The 97 lb Domo sits at one end of the range and the 159 lb Fold near the other, though the Fold rolls on its wheels once folded. If one person will store the machine alone, favor wheels and lower weight over the smallest folded size.

Compare folding and upright machines in Pilates for the home. Studios planning a stacked floor can start with the HL stackable reformers.
